Item Sales Info

Part Number: A03Y4 / Vendor ID Number: 87 / Custom:

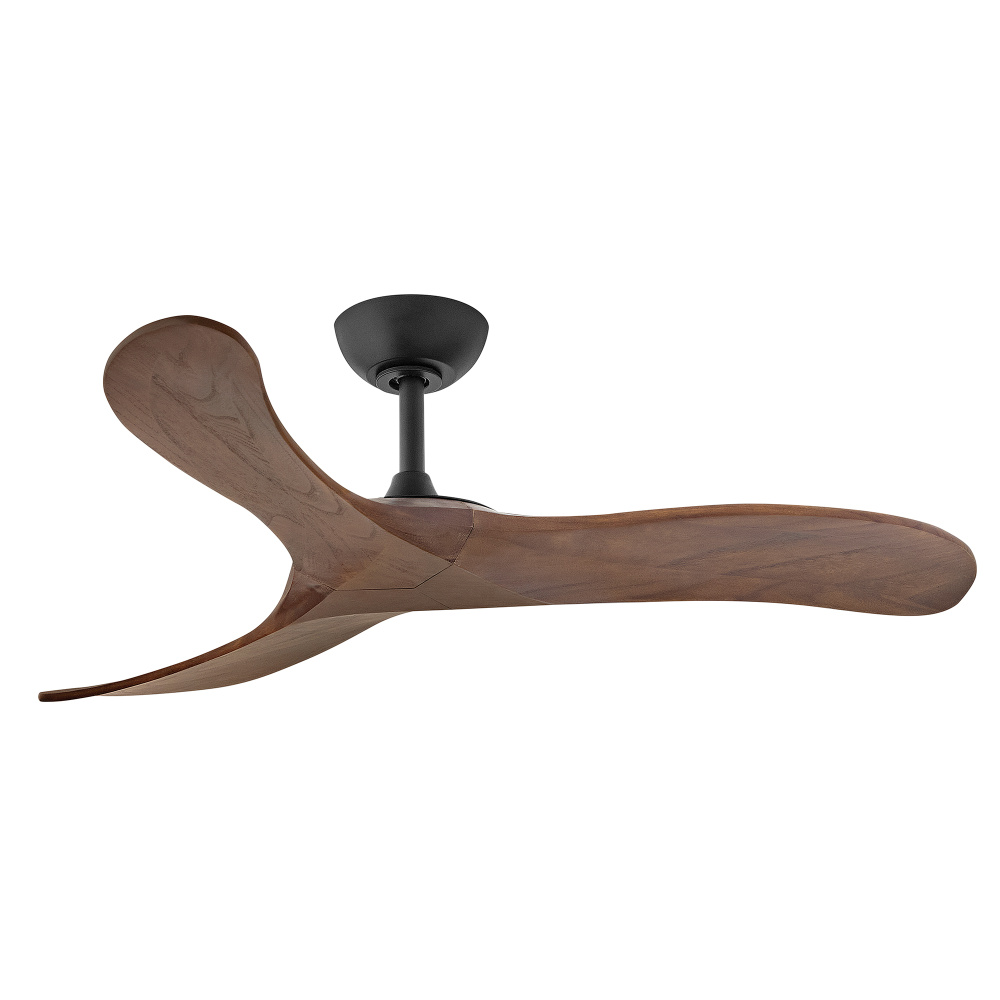

Swell 48" Smart Fan

749

Pack Of: 1

0 Available in HOT DEALS Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 11.50"

Width: 48.00"

Length: 48.00"

Product Overview

Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.

Product Availability

Finish:

Blade Finish:

Additional options that would change other selections

Additional Information

Bold silhouette with dramatic details creates a modern statement

Can be hung on a sloped ceiling

Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app

Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms

Equipped with an energy-efficient DC motor

Fan Control included, 6 Spd HIRO:R

Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote

FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling

FAN: DC Motor

Fans should be installed at a minimum of 7 feet from the floor

Motor carries a lifetime warranty

This item includes a 6" down rod (other lengths of down rods are available)

WiFi Enabled Smart Fan is compatible with your home’s WiFi network

Info & Guides

Click Here to View Spec Sheet

Click Here to View Spec Sheet 1

Click Here to View Installation Manual

Technical Details

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Black

Style:

Modern

Option:

Damp Rated

Voltage:

100-120

Location Rating:

Damp Rated

Smart Home:

Yes

Category:

Fan

Finish:

Matte Black

Style:

Modern

Family:

Swell

Voltage:

120 V

Air Flow Efficiency:

5469

Amperage:

0.5

Blade Finish:

Walnut

Blade Pitch:

Blade Span:

Canopy:

6.5 Dia x 2.25 D

Introduction Date:

01/01/2026

Light Kit Included:

Material:

Steel

Motor Type:

Ship Carton Height:

11.3

Ship Carton Length:

32.5

Ship Carton Width:

12.2

Ship Weight:

17.82

Vendor Ship Method:

Parcel

Weight:

11.66

Airflow Avg:

3521

AMPS Avg:

0.28

Avg Airflow Efficiency:

158

Avg Energy Use Watts:

Blade Material:

Wood

Blade Sweep:

Blade To Ceiling Height:

Blades Reversible:

Bulb Included:

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Efficiency High:

146

Energy Cost Avg:

Energy Cost High:

Energy Use High:

Fan Control:

Yes

Flush Mount Fan:

Install Sloped Ceiling:

Light Kit Adaptable:

Light Kit Included Removeable:

Location Rating:

Damp Rated

Motor Fan Speed:

Motor Name:

153x16

Number of Blades:

Operating Frequency:

Prop 65 Description:

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

210

RPMS High:

210

Safety Rating:

ETL Approved

Title 24:

Uplight 2:

WIFI Control Included:

Yes
